Panduit
NetKey®
DC-NK-SMBX-2
Surface Mount Box — 2-Port
NetKey®
Surface Mount
Box
2-Port Keystone Box
Plenum Rated • Adhesive Label
Plenum Rated • Adhesive Label
2-PORT
PLENUM
KEYSTONE
ABS
Part Number Reference
| Color | Mayer Part # |
|---|---|
| Electric Ivory | PANNK2BXEIA |
| White | PANNK2BXWHA |
| Int. White | PANNK2BXIWA |
Pull this card → Take to counter →
Tell us the color & quantity you need
Tell us the color & quantity you need
↩ Return Card

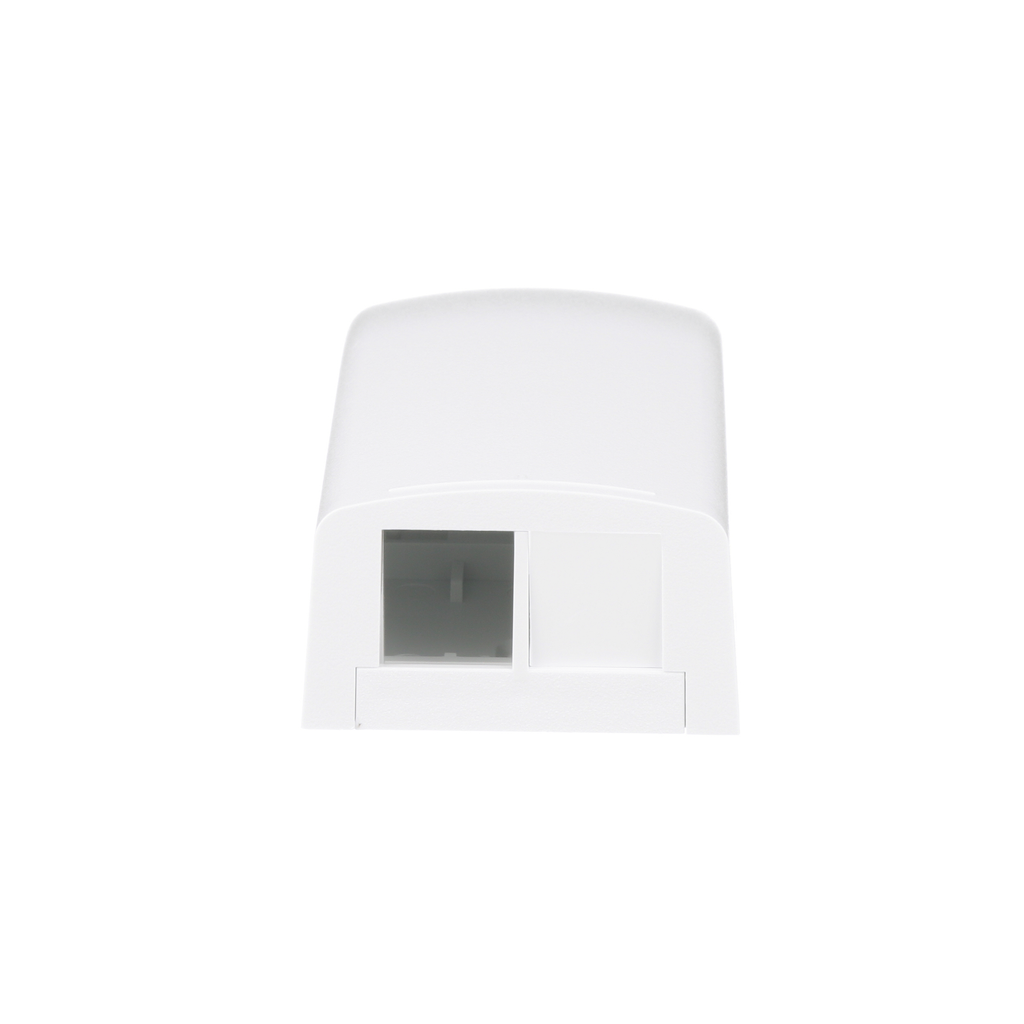

NetKey® Surface Mount Box (2-Port Plenum Rated)
Technical Specifications
TypeSurface Mount
MaterialABS
Ports2-Port
RatingPlenum
ModuleKeystone
ID TypeAdhesive
Length3.65 in.
Width1.95 in.
Height1.12 in.
Colors3 Options
RacewayLD3/5 Compat
BrandNetKey®
⚙ What's Included
Complete kit: (1) Box Cover, (1) Box Base, (2) Mounting Screws, (1) Cable Tie, (1) Foam Tape
NetKey® Surface Mount Box for Easy Data Connection Access
Organize and access your data connections easily with our surface mount box - it is plenum rated and features a secure cover and multiple mounting options. 2-port capacity - Holds two NetKey keystone modules. Plenum rated - Safe for installation in air-handling spaces. No in-wall box needed - Perfect for retrofit installations where running cable in walls is impractical. Surface mount design - Installs directly on wall, baseboard, or furniture. Raceway compatible - Works with LD3/LDP3 and LD5/LDP5 raceway systems. Secure cover - Protects connections and provides clean appearance. Complete mounting hardware included. RoHS Compliant - Environmentally responsible.
