Panduit
NetKey®
DC-NK-NK688M
Category 6 Punchdown Jack Module
NK6™

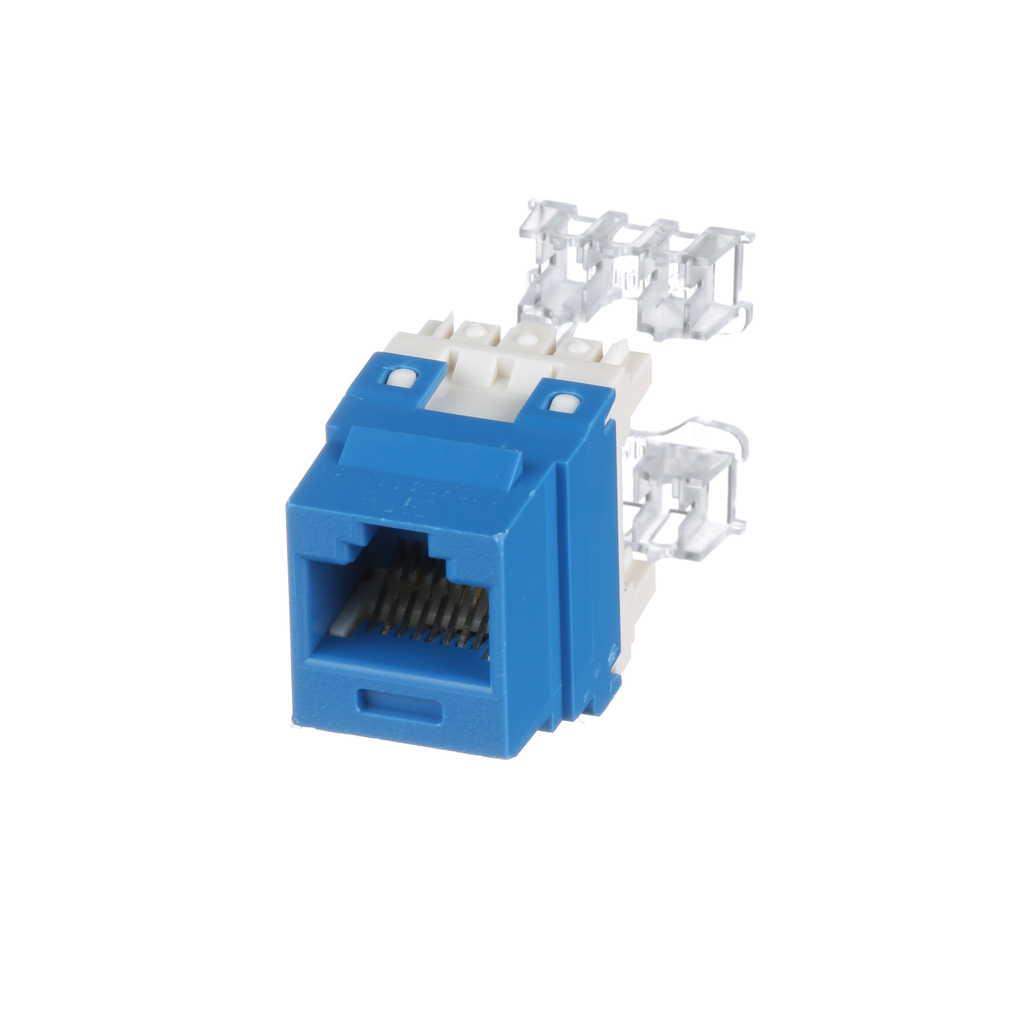

Panduit NetKey Cat 6 Jack

NetKey® Cat 6 NK6™
Punchdown Jack

Punchdown Termination
8-Position, 8-Wire Keystone
CAT 6 UTP 22-26 AWG RJ45 PUNCHDOWN
Key Features
110-style punchdown termination
100% factory tested & serialized
Exceeds ANSI/TIA-568 Cat 6 & ISO Class E
Keystone interface — universal mounting
Color Mayer Part #
Blue
 PANNK688MBU
White
 PANNK688MWH
Black
 PANNK688MBL
Electric Ivory
 PANNK688MEI
Green
 PANNK688MGR
Gray
 PANNK688MIG
Int. White
 PANNK688MIW
Orange
 PANNK688MOR
Red
 PANNK688MRD
Yellow
 PANNK688MYL
Pull this card → Take to counter →
Tell us the color & quantity you need
↩ Return Card
NetKey® Cat 6 Jack — Details & Compatibility
DC-NK-NK688M
Technical Specifications
CategoryCat 6 / Class E
TypeUTP (Unshielded)
Positions8P8C (RJ45)
Wire Gauge22–26 AWG
Termination110 Punchdown
WiringT568A / T568B
Contact Plating50μ" Gold
InterfaceKeystone
Works With — NetKey® System
Faceplates
1–6 port, all colors
with/without labels
Patch Panels
24 & 48 port
loaded or unloaded
Surface Boxes
1, 2 & 4 port
wall mount
Usually Bought Together
1
Faceplate
NetKey w/ or w/o label
2
Blank Module
Fill unused ports
3
Surface Mount Box
When no mud ring avail
4
Cat 6 Patch Cord
1ft–100ft, various colors
5
Patch Panel
24/48 port keystone
6
110 Punchdown Tool
For jack termination

110-Style Punchdown Termination

Requires 110 punchdown tool. Accepts solid or stranded cable (22–26 AWG). Supports both T568A and T568B wiring schemes. Gold-plated contacts for superior performance. Keystone interface fits any standard faceplate or panel.

Certifications & Standards
ANSI/TIA-568-C.2 Cat 6 ISO 11801 Class E UL Listed RoHS Compliant 100% Factory Tested
Mayer Electric Supply
Your Connected Solutions Partner
panduit.com/netkey
Questions? Ask your counter rep
Scan for product details
Scan for Info
Please return this card to the display after ordering
