Panduit
Mini-Com®
DC-MC-CJ6X88TG
Category 6A UTP Jack Module
TX6A™ 10Gig

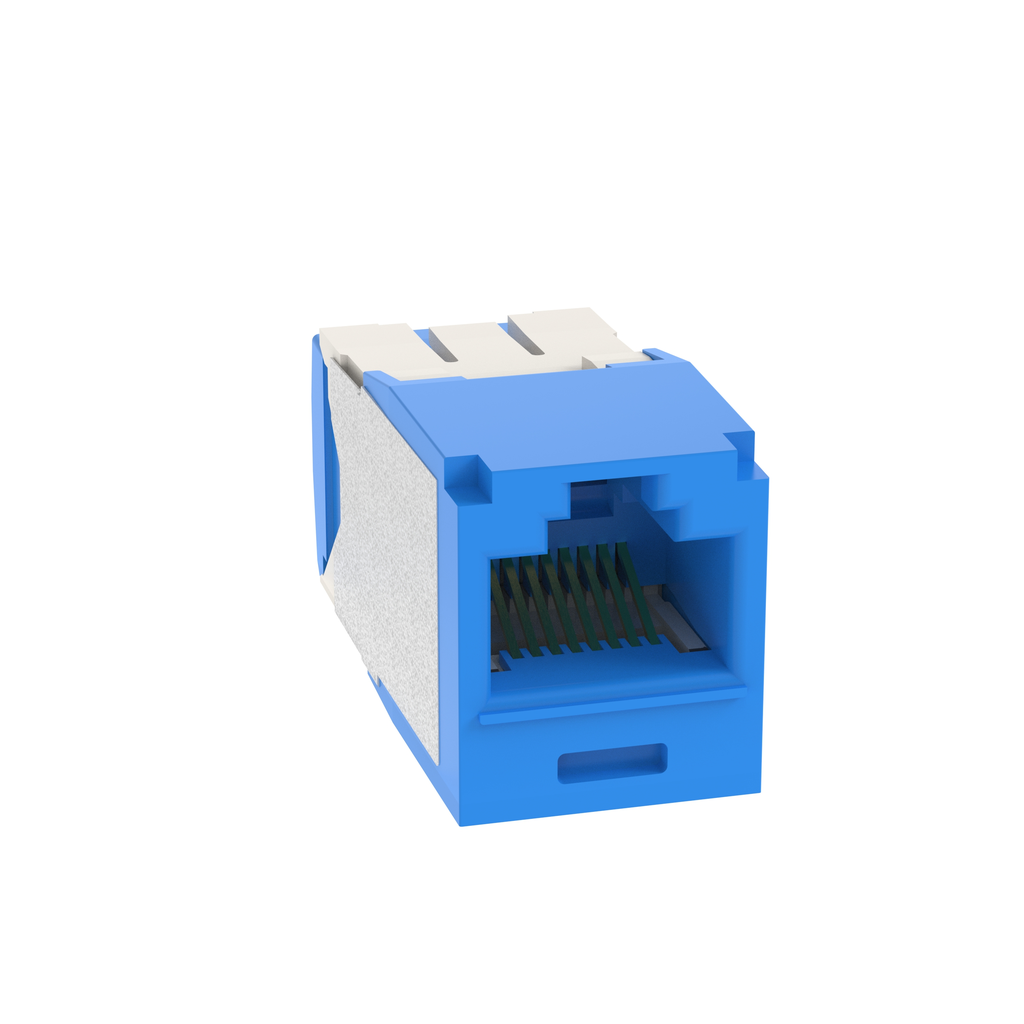

Panduit Mini-Com Cat 6A Jack

Mini-Com® TX6A™ 10Gig
UTP RJ45 Jack Module

TG-Style Tool-Free Termination
8-Position, 8-Wire Universal
CAT 6A UTP 22-26 AWG RJ45 10GIG
Key Features
No punchdown tool required — TG snap-in
100% factory tested & serialized
Exceeds ANSI/TIA-568 Cat 6A & ISO Class EA
Re-terminable — solid or stranded cable
Part Number Reference
Color Mayer Part #
Arctic White
 PANCJ6X88TGAW
Blue
 PANCJ6X88TGBU
White
 PANCJ6X88TGWH
Black
 PANCJ6X88TGBL
Elec Ivory
 PANCJ6X88TGEI
Green
 PANCJ6X88TGGR
Gray
 PANCJ6X88TGIG
Int. White
 PANCJ6X88TGIW
Orange
 PANCJ6X88TGOR
Red
 PANCJ6X88TGRD
Yellow
 PANCJ6X88TGYL
Violet
 PANCJ6X88TGVL
Pull this card → Take to counter →
Tell us the color & quantity you need
↩ Return Card
Mini-Com® Cat 6A Jack — Details & Compatibility
DC-MC-CJ6X88TG
Technical Specifications
CategoryCat 6A / Class EA
TypeUTP (Unshielded)
Positions8P8C (RJ45)
Wire Gauge22–26 AWG
TerminationTG (Tool-Free)
WiringT568A / T568B
MaterialABS / Polycarb
Dimensions0.62×1.5×0.71"
Works With — Mini-Com® System
Faceplates
1–6 port, all colors
with/without labels
Patch Panels
24 & 48 port
loaded or unloaded
Surface Boxes
1, 2 & 4 port
wall mount
Usually Bought Together
1
Faceplate
Mini-Com w/ or w/o label
2
Blank Module
Fill unused ports
3
Surface Mount Box
When no mud ring avail
4
Cat 6A Patch Cord
1ft–100ft, Blue or White
5
Patch Panel
24/48 port modular RM
6
Labels
Brother P-Touch tape

Tool-Free TG Termination

No punchdown tool needed. Forward-motion termination maintains pair geometry and eliminates conductor untwist. Green cap = Cat 6A. Supports T568A & T568B wiring. Can be re-terminated multiple times without damage.

Certifications & Standards
ANSI/TIA-568-C.2 Cat 6A ISO 11801 Class EA UL Listed RoHS Compliant 100% Factory Tested
Scan for product details
Scan for Info
Please return this card to the display after ordering
