Panduit
Mini-Com®
DC-MC-CJ5E88TG

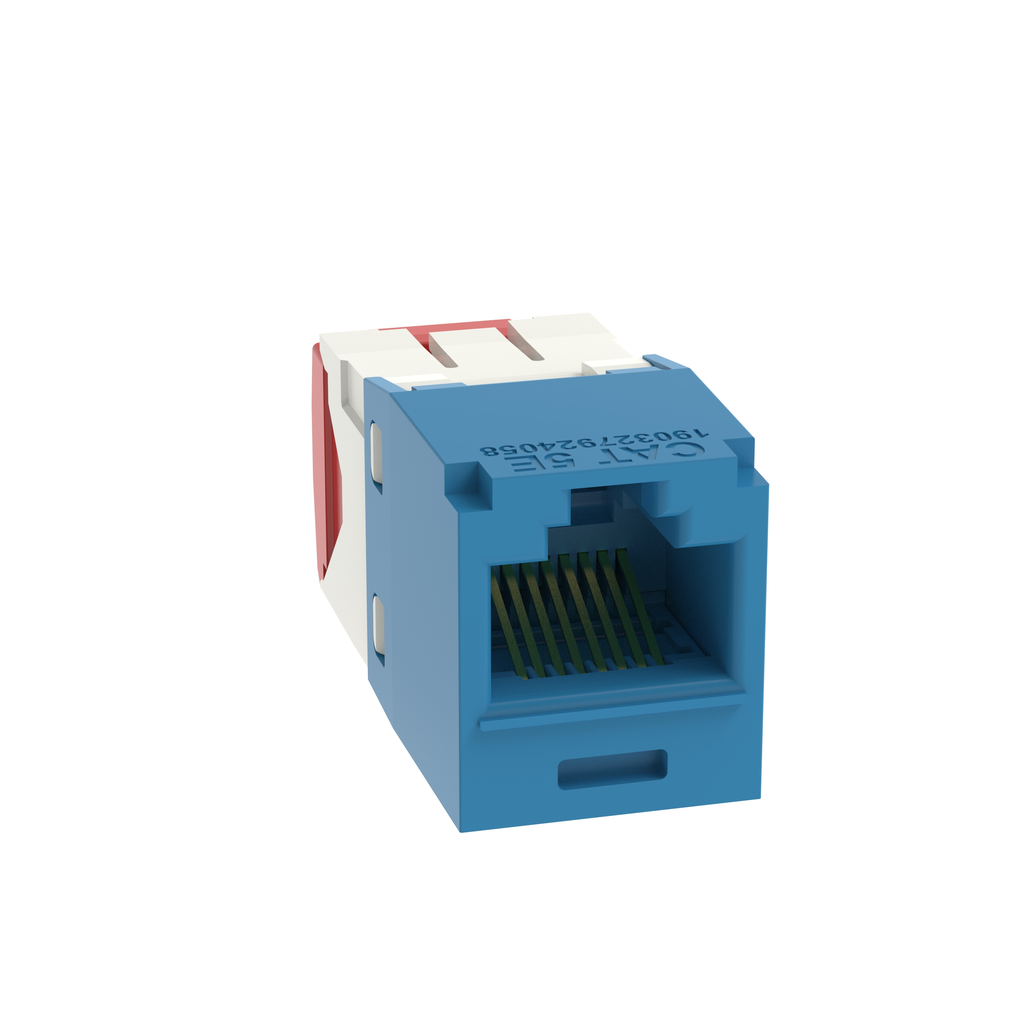

Category 5e UTP Jack Module
TX5e™
Mini-Com® TX5e™
UTP RJ45 Jack Module
TG-Style Tool-Free Termination
8-Position, 8-Wire Universal
8-Position, 8-Wire Universal
CAT 5e
UTP
22-26 AWG
RJ45
TG STYLE
Key Features
No punchdown tool required — TG snap-in
100% factory tested & serialized
Exceeds ANSI/TIA-568-C.2 Cat 5e & ISO Class D
Re-terminable — solid or stranded cable
Part Number Reference
| Color | Mayer Part # |
|---|---|
Arctic White |
PANCJ5E88TGAW |
Blue |
PANCJ5E88TGBU |
White |
PANCJ5E88TGWH |
Black |
PANCJ5E88TGBL |
Elec Ivory |
PANCJ5E88TGEI |
Green |
PANCJ5E88TGGR |
Gray |
PANCJ5E88TGIG |
Int. White |
PANCJ5E88TGIW |
Orange |
PANCJ5E88TGOR |
Red |
PANCJ5E88TGRD |
Yellow |
PANCJ5E88TGYL |
Violet |
PANCJ5E88TGVL |
Pull this card → Take to counter →
Tell us the color & quantity you need
Tell us the color & quantity you need
↩ Return Card
Mini-Com® Cat 5e Jack — Details & Compatibility
DC-MC-CJ5E88TG
Technical Specifications
CategoryCat 5e / Class D
TypeUTP (Unshielded)
Positions8P8C (RJ45)
Wire Gauge22–26 AWG
TerminationTG (Tool-Free)
WiringT568A / T568B
MaterialABS / Polycarb
Dimensions0.62×1.5×0.71"
Works With — Mini-Com® System
Faceplates
1–6 port, all colors
with/without labels
with/without labels
Patch Panels
24 & 48 port
loaded or unloaded
loaded or unloaded
Surface Boxes
1, 2 & 4 port
wall mount
wall mount
Certifications & Standards
ANSI/TIA-568-C.2
ISO 11801 Class E
UL Listed
RoHS Compliant
100% Factory Tested
Scan for Info
