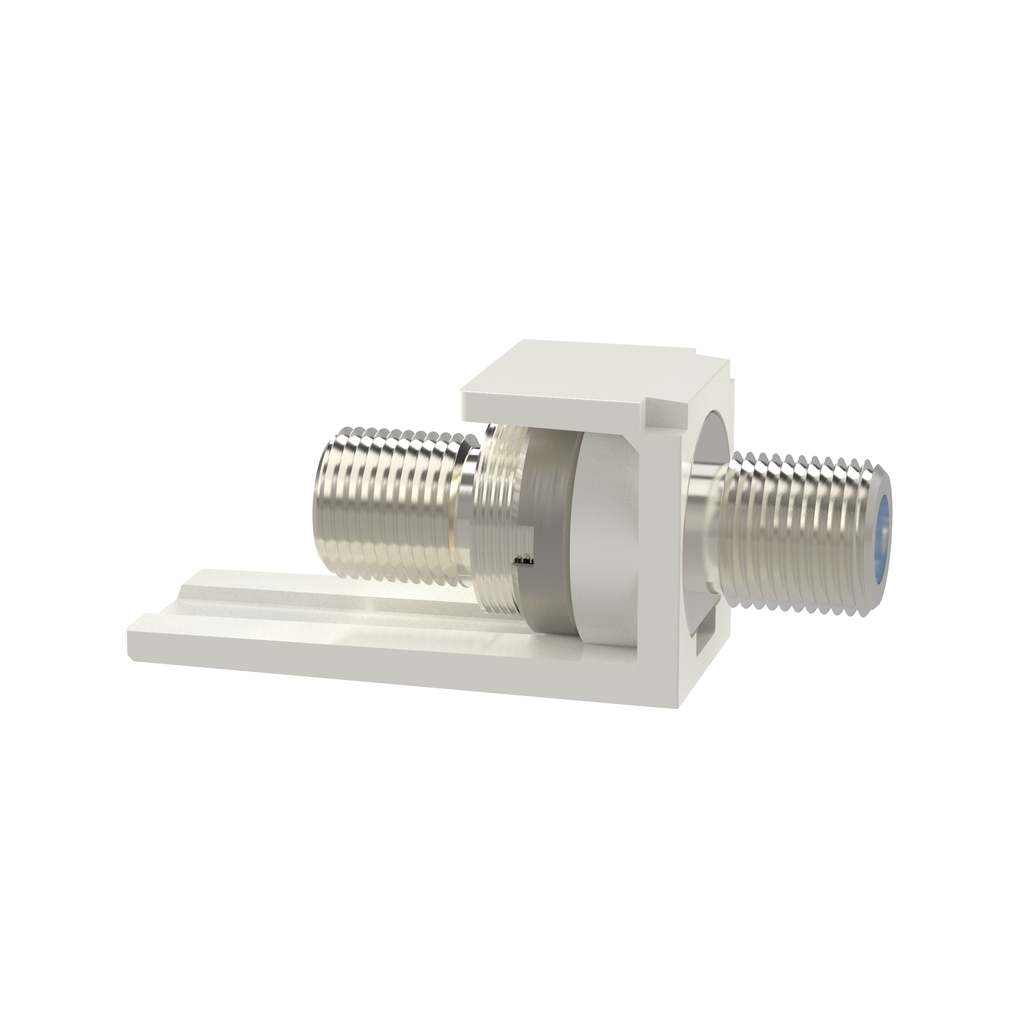

Panduit
Mini-Com®
DC-PAN-CMFWH
F-Type Coax Module
3.0 GHz
Mini-Com®
F-Type Coupler
Module
3.0 GHz Bandwidth • RG-6/RG-59 Compatible
F-TYPE
3.0 GHz
75 OHM
RG-6/59
RoHS
Key Features
3.0 GHz bandwidth for HD/4K video
Mini-Com® snap-in module
RG-6 and RG-59 coax cable compatible
75 ohm impedance • ABS construction
Part Number Reference
| Color | Mayer Part # |
|---|---|
Electric Ivory |
PANCMFEI |
Int. White |
PANCMFWH |
Pull this card → Take to counter →
Tell us the color & quantity you need
Tell us the color & quantity you need
↩ Return Card
Mini-Com® F-Type Module — Details & Uses
DC-PAN-CMFWH
Technical Specifications
TypeF-Type Coupler
Bandwidth3.0 GHz
Impedance75 Ohm
MaterialABS
Cable TypeRG-6 / RG-59
MountingMini-Com Snap-In
Dimensions0.71"H x 0.61"W
ComplianceRoHS Compliant
Compatible With — Mini-Com® System
Faceplates
Any keystone
faceplate
faceplate
Patch Panels
Keystone style
patch panels
patch panels
Surface Boxes
Keystone
surface mount
surface mount
Applications & Installation
Cable TV (CATV) - Extend cable TV and antenna connections to wall plates. Security Systems - IP and analog camera video feeds. Video Distribution - HD/4K video, multimedia, and satellite connections. Compatible Systems - Works with all Mini-Com® faceplates, surface mount boxes, and patch panels. Installation - Tool-free snap-in design for quick deployment. Supports RG-6 and RG-59 coaxial cable. Available in bulk packs (1 pc or 100 pc) for larger installations.
