Erico Caddy
nVent Cable Management Solutions

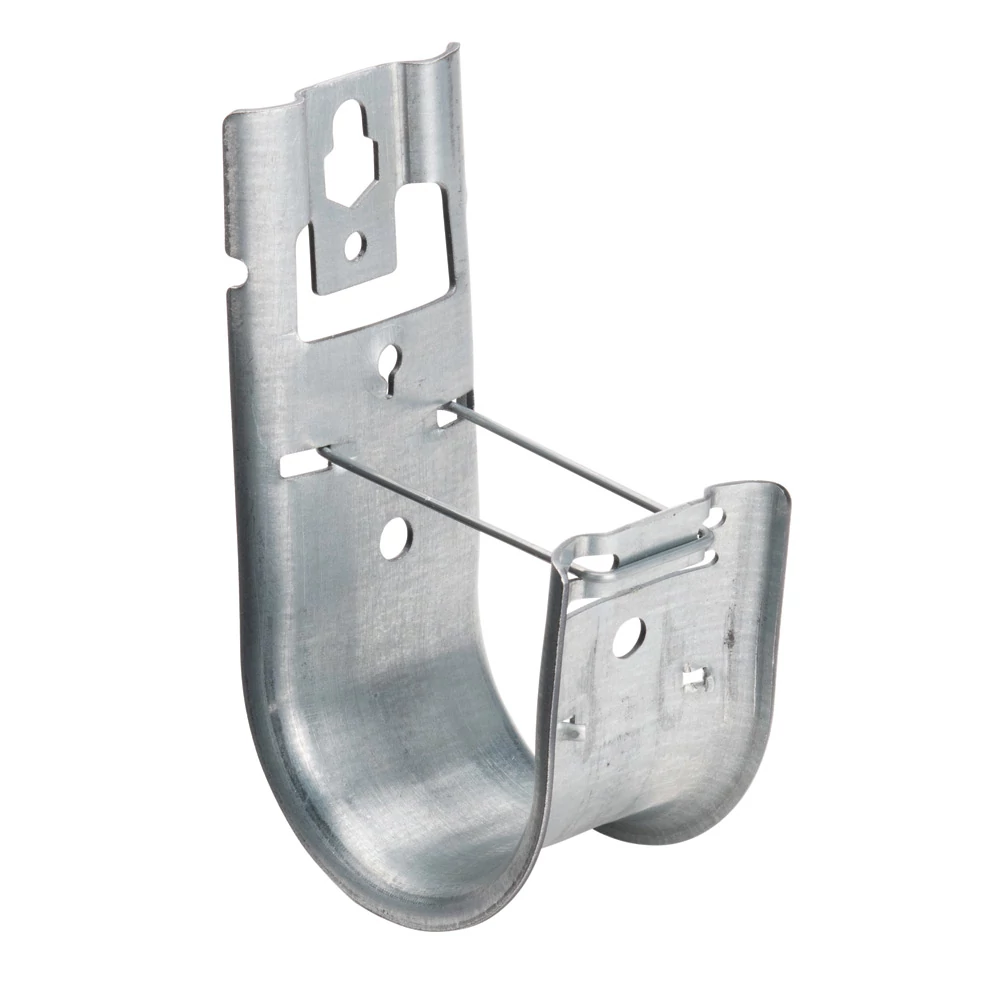

Cat HP J-Hook • Cable Support System
Cat HP J-Hook
Cable Support
VERSA-MOUNT
UL 2043
Multi-Function Installation • Plenum Rated • 60 lb Load
Revolutionary J-hook with Versa-Mount Technology providing wall, ceiling, and threaded rod mounting from a single SKU. Optimized for Cat5e, Cat6, Cat6A, PoE, and fiber optic cables.
Versa-Mount
3-in-1 Install
3-in-1 Install
UL 2043
Plenum Rated
Plenum Rated
Optimized
Bend Radius
Bend Radius
60 lb Static
Load Rating
Load Rating
Available Sizes & Capacities
Size
Capacities
Mayer Part #
1" Dia
20 Cat5e • 15 Cat6 • 10 Cat6A
ERICAT16HP
1 5/16" Dia
50 Cat5e • 40 Cat6 • 25 Cat6A
ERICAT21HP
2" Dia
90 Cat5e • 60 Cat6 • 35 Cat6A
ERICAT32HP
3" Dia
200 Cat5e • 150 Cat6 • 80 Cat6A
ERICAT48HP
4" Dia
330 Cat5e • 220 Cat6 • 140 Cat6A
ERICAT64HP
Available Colors (Add suffix to part #)
Galv (None)
Black (BA)
Blue (BU)
Green (GR)
Orange (OR)
Red (RD)
White (WH)
Yellow (YL)
🔧 Multi-Function Clip Version Available
J-Hooks with integrated clip for quick attachment to 1/4" threaded rod or #12-#8 wire. Add "4Z34" suffix (e.g., ERICAT16HP4Z34). See back for details.
Pull card → Counter → Specify size & color
Cat HP J-Hook Cable Support
Erico Caddy • nVent
⚙️ Versa-Mount Technology
Revolutionary design provides THREE structural attachment methods from a SINGLE SKU, reducing inventory while maintaining jobsite flexibility.
✓ Wall Mount ✓ Ceiling Mount ✓ Threaded Rod Mount
Complete Size & Capacity Chart
Part #
Dia
Cat5e
Cat6
Cat6A
Load
CAT16HP
1"
20
15
10
60 lb
CAT21HP
1 5/16"
50
40
25
60 lb
CAT32HP
2"
90
60
35
60 lb
CAT48HP
3"
200
150
80
60 lb
CAT64HP
4"
330
220
140
60 lb
Key Features & Benefits
- Versa-Mount 3-in-1 installation system
- Industry-leading bend radius protection
- Optimized for PoE applications
- Superior fill capacity & load rating
- Multiple colors for pathway organization
- Pregalvanized steel construction
- UL 2043 plenum space rated
- Reduces SKU inventory requirements
- Supports fiber optic cables
- Non-continuous support spacing: 5'
- Material: Pregalvanized steel
- 70% fill rate capacity calculations
🔧 Multi-Function Clip Version (4Z34 Series)
J-Hooks with integrated clip for quick attachment to 1/4" threaded rod or #12-#8 wire. Ideal for fast installations without additional hardware.
Available Sizes:
ERICAT16HP4Z34 (1") • ERICAT21HP4Z34 (1 5/16") • ERICAT32HP4Z34 (2") • ERICAT64HP4Z34 (4")
ERICAT16HP4Z34 (1") • ERICAT21HP4Z34 (1 5/16") • ERICAT32HP4Z34 (2") • ERICAT64HP4Z34 (4")
✓ Standards & Compliance
UL 2043: Suitable for air handling (plenum) spaces
ISO/IEC 14763-2: Information technology cabling
ANSI/TIA 568: Commercial building telecommunications
ANSI/TIA 569: Telecommunications pathways and spaces
EN 50174-2: Installation of cabling (European standard)
ISO/IEC 14763-2: Information technology cabling
ANSI/TIA 568: Commercial building telecommunications
ANSI/TIA 569: Telecommunications pathways and spaces
EN 50174-2: Installation of cabling (European standard)
💡 Part Number Format
Base part # + Color suffix. Example: ERICAT32HP (pregalvanized) or ERICAT32HPBU (blue). Color codes: BA=Black, BU=Blue, GR=Green, OR=Orange, RD=Red, WH=White, YL=Yellow. All sizes available in all colors (check availability).
