Erico Caddy
nVent Cable Management Solutions

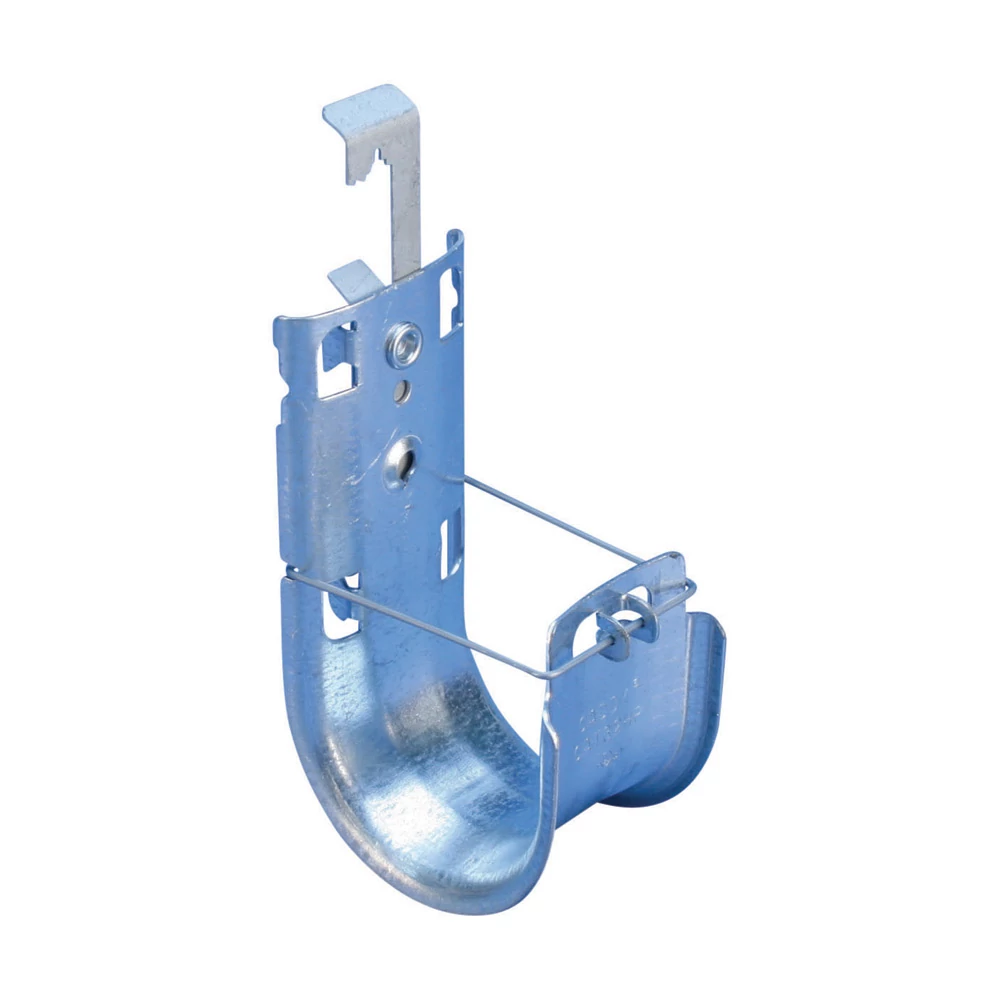

J-Hook with Multi-Function Clip • 4Z34 Series
J-Hook with
Multi-Function Clip
QUICK-ATTACH
UL 2043
Fast Installation • ¼" Rod or #12-#8 Wire • 60 lb Load
J-Hook with integrated multi-function clip for quick attachment to threaded rod or wire. No additional hardware needed for fast, secure installations.
Integrated
Quick Clip
Quick Clip
No Extra
Hardware
Hardware
¼" Rod or
#12-#8 Wire
#12-#8 Wire
60 lb Static
Load Rating
Load Rating
🔧 Multi-Function Clip Attachment
Built-in clip attaches directly to ¼" threaded rod or #12-#8 gauge wire. Saves installation time and eliminates need for separate attachment hardware.
Available Sizes & Capacities
1" Dia
20 Cat5e • 15 Cat6 • 10 Cat6A
ERICAT16HP4Z34
1 5/16" Dia
50 Cat5e • 40 Cat6 • 25 Cat6A
ERICAT21HP4Z34
2" Dia
90 Cat5e • 60 Cat6 • 35 Cat6A
ERICAT32HP4Z34
4" Dia
330 Cat5e • 220 Cat6 • 140 Cat6A
ERICAT64HP4Z34
💡 Standard Versa-Mount Also Available
For wall, ceiling, or threaded rod mounting without the quick clip, see standard Cat HP J-Hook series (CAT16HP, CAT21HP, CAT32HP, CAT64HP). Available in multiple colors.
Pull card → Counter → Specify size
J-Hook with Multi-Function Clip
Erico Caddy • nVent • 4Z34 Series
🔧 Multi-Function Clip Specifications
Integrated spring-loaded clip provides quick, secure attachment without additional hardware. Simply snap onto threaded rod or wire for fast installation.
✓ ¼" Threaded Rod ✓ #12 AWG Wire ✓ #10 AWG Wire ✓ #8 AWG Wire
Complete Size & Capacity Chart
Part Number
Dia
Cat5e
Cat6
Cat6A
ERICAT16HP4Z34
1"
20
15
10
ERICAT21HP4Z34
1 5/16"
50
40
25
ERICAT32HP4Z34
2"
90
60
35
ERICAT64HP4Z34
4"
330
220
140
Key Features & Benefits
- Integrated multi-function clip
- Quick attachment - no tools needed
- Attaches to ¼" threaded rod
- Attaches to #12-#8 gauge wire
- Saves installation time
- Eliminates additional hardware
- 60 lb static load rating (all sizes)
- UL 2043 plenum space rated
- Industry-leading bend radius
- Pregalvanized steel construction
- Maximum spacing: 5' (1.5 m)
- 70% fill rate capacity calculations
📊 4Z34 Clip vs. Standard Versa-Mount
4Z34 Multi-Function Clip: Best for threaded rod or wire installations. Quick snap-on attachment, no additional hardware required.
Standard Versa-Mount (CAT-HP): Best for wall, ceiling, or threaded rod mounting. Three UL-certified attachment methods. Available in 8 colors.
Standard Versa-Mount (CAT-HP): Best for wall, ceiling, or threaded rod mounting. Three UL-certified attachment methods. Available in 8 colors.
✓ Standards & Compliance
UL 2043: Suitable for air handling (plenum) spaces
ISO/IEC 14763-2: Information technology cabling
ANSI/TIA 568: Commercial building telecommunications
ANSI/TIA 569: Telecommunications pathways and spaces
Load Rating: 60 lb static load (all sizes)
ISO/IEC 14763-2: Information technology cabling
ANSI/TIA 568: Commercial building telecommunications
ANSI/TIA 569: Telecommunications pathways and spaces
Load Rating: 60 lb static load (all sizes)
💡 Installation Notes
• Non-continuous support spacing: Maximum 5' (1.5 m) per TIA 569-C.9.7
• All cable capacities calculated at 70% fill rate
• Spring-loaded clip design ensures secure grip on rod or wire
• Material: Pregalvanized steel
• Compatible with Cat5e, Cat6, Cat6A, PoE, and fiber optic cables
• All cable capacities calculated at 70% fill rate
• Spring-loaded clip design ensures secure grip on rod or wire
• Material: Pregalvanized steel
• Compatible with Cat5e, Cat6, Cat6A, PoE, and fiber optic cables
